SonarQube自动扫描GitLab项目代码

Monster
2023-07-01 / 0 评论 / 1 点赞 / 19 阅读 / 5485 字 / 正在检测是否收录...
温馨提示:
请确保在评论和互动中保持礼貌和尊重。避免使用侮辱性、歧视性或攻击性语言。我们鼓励建设性的讨论和意见交流。

SonarQube自动扫描GitLab代码

安装gitlab-runner

插件挂载目录

mkdir -p /data/gitlab-runner/config
docker run -d --name gitlab-runner \
-v /data/gitlab-runner/config:/etc/gitlab-runner \
-v /var/run/docker.sock:/var/run/docker.sock \
--restart always \
--privileged=true \
gitlab/gitlab-runner

注册gitlab-runner

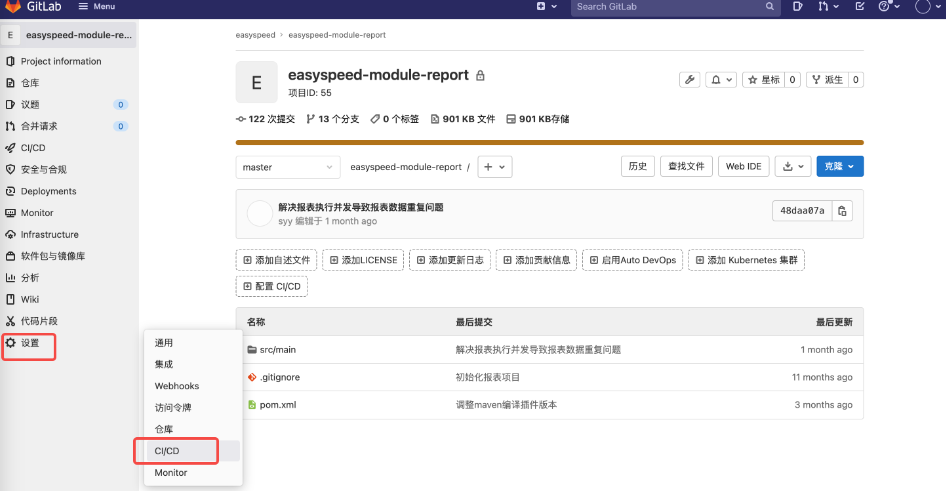

来到要扫描的项目下,设置- CI/CD

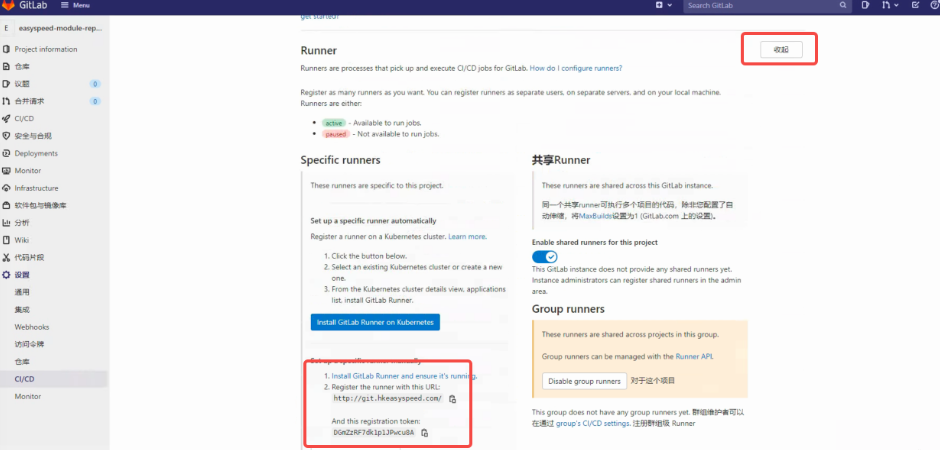

展开Runner,可以看见你的链接和token,点击复制

从Runner复制后,进入gitlab-runner容器

依次输入:地址(http://git.hkeasyspeed.com/)、token(DGmZzRF7dk1p1JPwcu8A )、描述(report)、标签(report)、执行方式(docker)、镜像(sonarsource/sonar-scanner-cli:latest)

[root@localhost ~]# docker exec -it gitlab-runner bash
root@c73a1e8ec484:/# gitlab-runner register
Runtime platform                                    arch=amd64 os=linux pid=294 revision=5316d4ac version=14.6.0
Running in system-mode.

Enter the GitLab instance URL (for example, https://gitlab.com/):
http://git.hkeasyspeed.com/
Enter the registration token:
DGmZzRF7dk1p1JPwcu8A
Enter a description for the runner:
[c73a1e8ec484]: report
Enter tags for the runner (comma-separated):
report
Registering runner... succeeded                     runner=DGmZzRF7
Enter an executor: docker-ssh, shell, docker+machine, docker-ssh+machine, virtualbox, kubernetes, custom, docker, parallels, ssh:
docker
Enter the default Docker image (for example, ruby:2.6):
sonarsource/sonar-scanner-cli:latest
Runner registered successfully. Feel free to start it, but if it's running already the config should be automatically reloaded!
root@c73a1e8ec484:/# exit
exit
[root@localhost ~]#

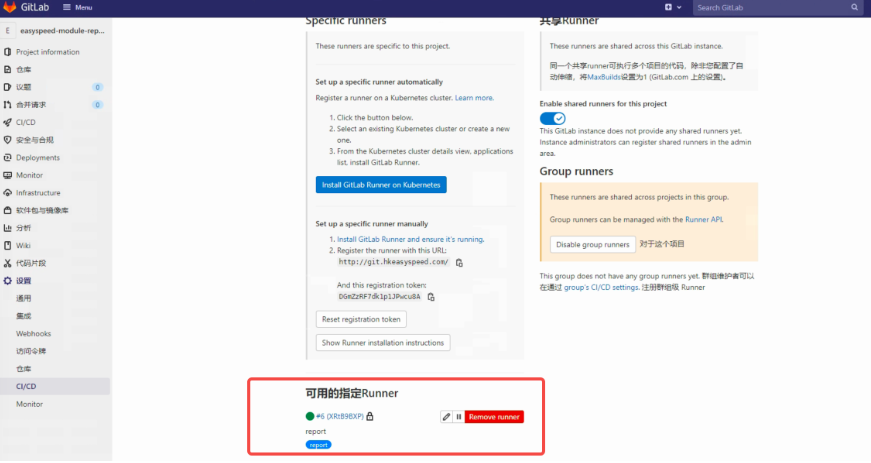

退出,刷新Runner页面可以看见有个可用的Runner,标签叫report

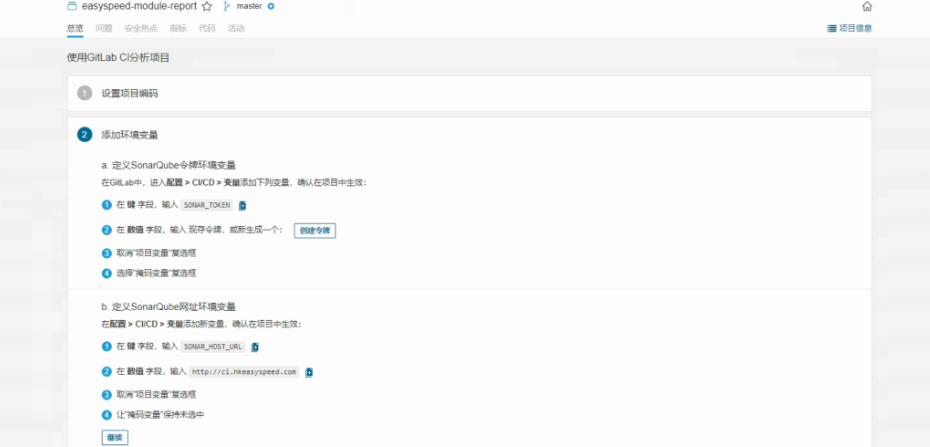

添加环境变量

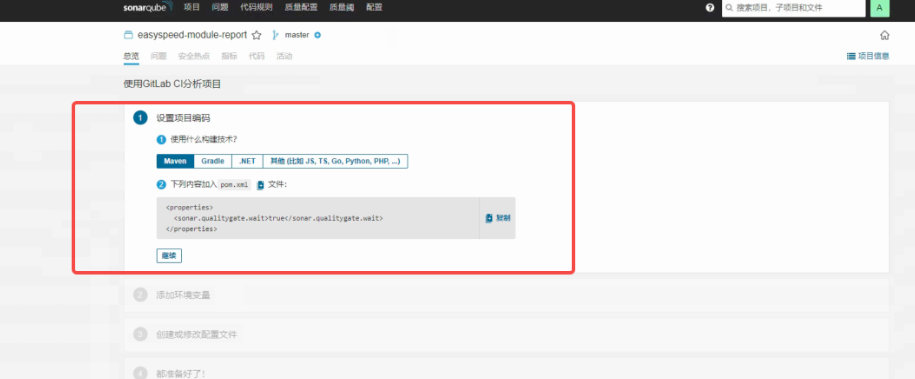

1.新增项目的时候,我们可以直接忽略第一步直接点击继续,我们跑的是docker不是maven扫描不用修改pom.xml文件

2.将token和url添加到gitlab项目变量里

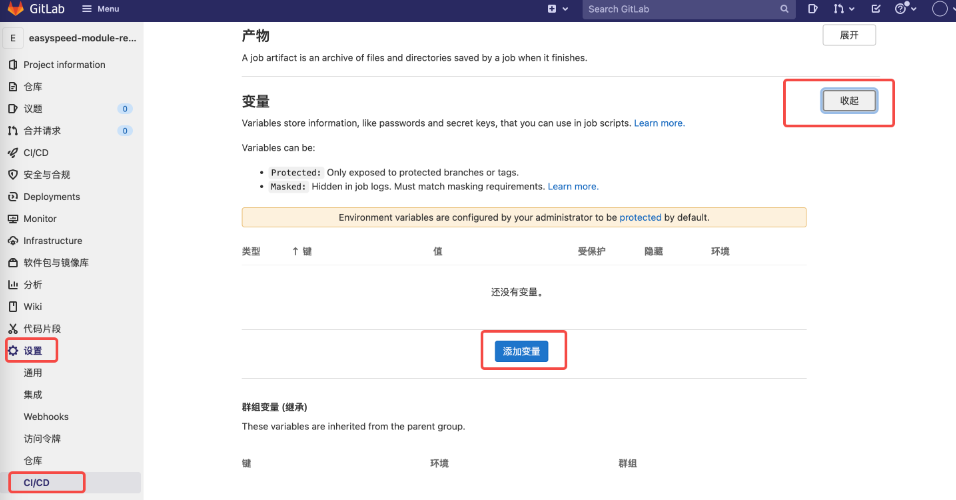

设置- CI/CD - 变量 - 展开 - 添加变量

新增SONAR_TOKEN=SnarQube生成的令牌值,SONAR_HOST_URL=SonarQube地址

其实变量也可以不用新增,直接编写.gitlab-ci.yml的时候直接明文指定也行。

编辑.gitlab-ci.yml

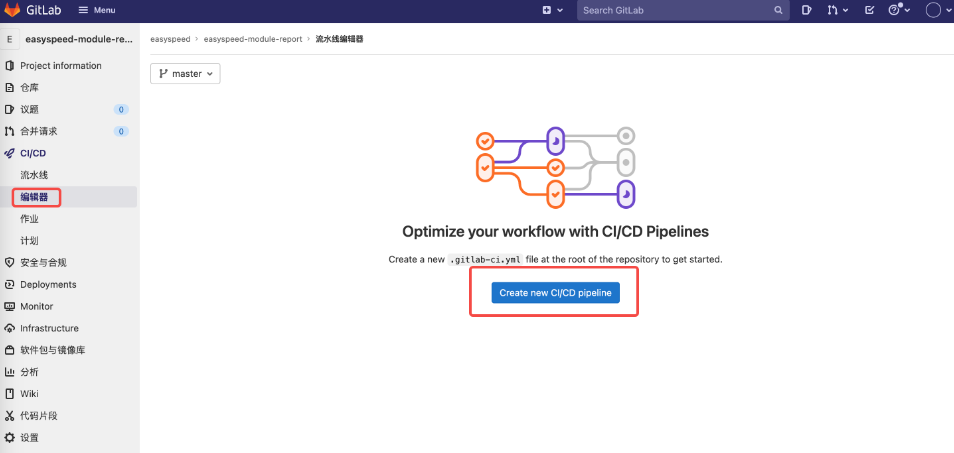

点击左侧的CI/CD - 编辑器 ,默认是没有gitlab-ci的yml文件,我们点击新建

将默认生成修改以下

项目标识:-Dsonar.projectKey=easyspeed-module-report

# This file is a template, and might need editing before it works on your project.
# To contribute improvements to CI/CD templates, please follow the Development guide at:
# https://docs.gitlab.com/ee/development/cicd/templates.html
# This specific template is located at:
# https://gitlab.com/gitlab-org/gitlab/-/blob/master/lib/gitlab/ci/templates/Getting-Started.gitlab-ci.yml

# This is a sample GitLab CI/CD configuration file that should run without any modifications.
# It demonstrates a basic 3 stage CI/CD pipeline. Instead of real tests or scripts,
# it uses echo commands to simulate the pipeline execution.
#
# A pipeline is composed of independent jobs that run scripts, grouped into stages.
# Stages run in sequential order, but jobs within stages run in parallel.
#
# For more information, see: https://docs.gitlab.com/ee/ci/yaml/README.html#stages

image:
  name: sonarsource/sonar-scanner-cli:latest
variables:
  SONAR_TOKEN: "${SONAR_TOKEN}"
  SONAR_HOST_URL: "${SONAR_HOST_URL}"
  GIT_DEPTH: 0
sonarqube-check:
  stage: build
  script:
    - sonar-scanner -X -Dsonar.qualitygate.wait=true -Dsonar.java.binaries=. -Dsonar.projectKey=easyspeed-module-report
  allow_failure: true
  only:
    - master	#安装了扫描多分支插件,在其他要扫描的分支创建相应.gitlab-ci.yml,修改成对应分值即可。
  tags:
    - report	#要和注册的gitlab-runner 标签一致

保存后会立马跑一遍流水线
